MOBILEV Compact mobile mini crane

Handling solutions

Country of origin : FRANCE
Solution : HANDLING SOLUTION

Compact mobile mini crane

ลักษณะอื่นๆ

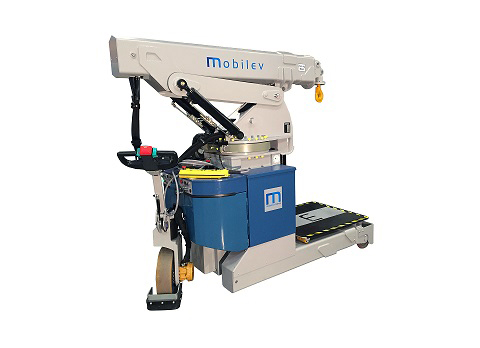

12MO S180 v2

The 12MO S180 V2 “pick and carry” mini crane is one of the range of workshop mini cranes that are electric powered with accompanying operator.

It can lift up to 1 ton in places that are hard to access and in restricted spaces.

This mini crane comes with stabilisers, a hydraulic slewing ring allowing it to turn through 180° and a hydraulic vertical mast with 600 mm of travel allowing the lifting hook to move straight up and down.

It knows how to make itself useful with a variety of industrial applications, especially to:

Features

     • Perform preventive or corrective maintenance work on production equipment.
     • Change the tooling on machines.
     • Feed production installations.

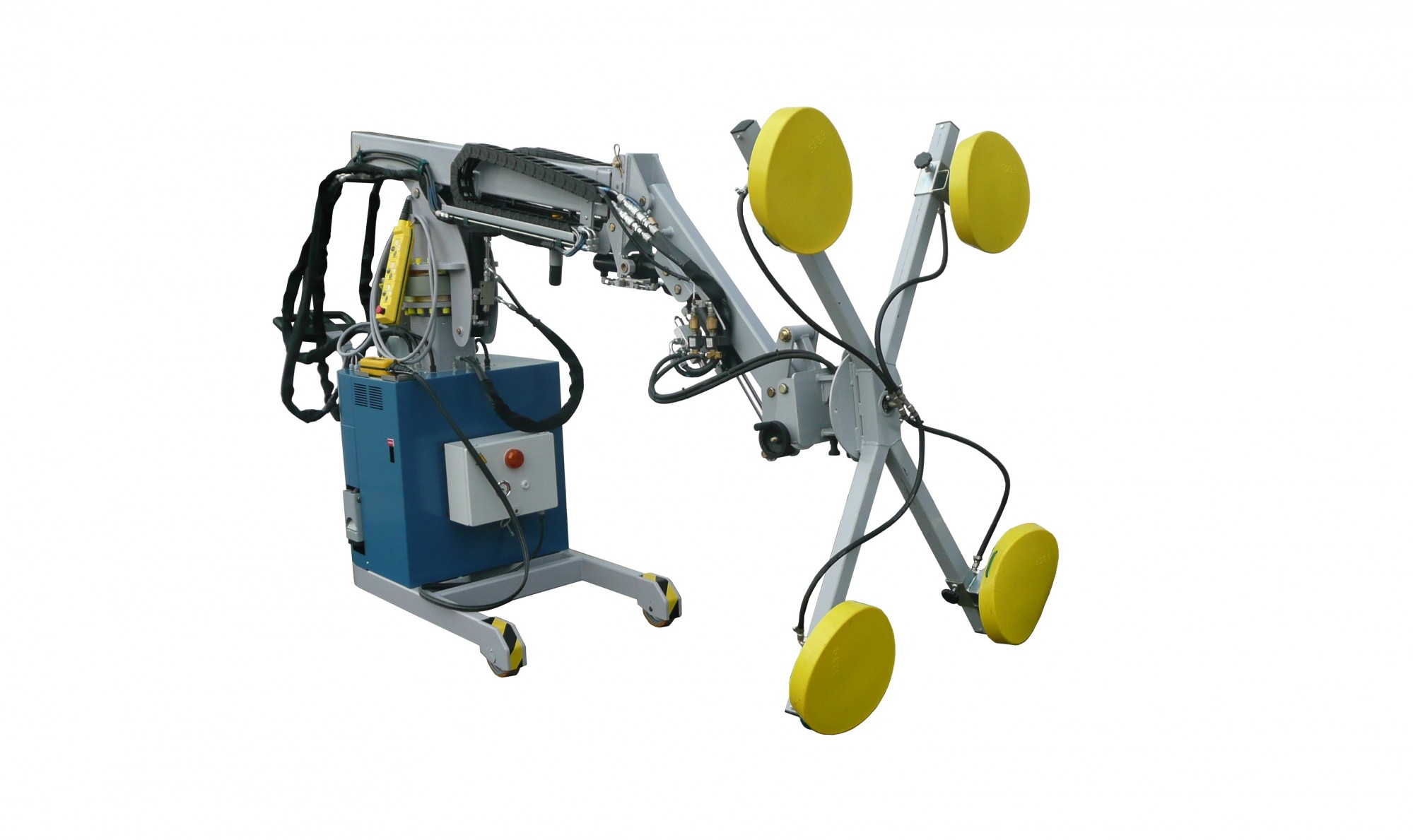

12MO S180 BPV

The 12MO S180 v2 BPV indoor use mini crane it comes with an articulated hydraulic arm, a vacuum lifting device equipped jib with a capacity of 300 kg and a standalone vacuum generating unit.

This mini crane can easily move around inside buildings to fit glazing in high or overhanging locations.

It will pass through a pedestrian door only 1.90 x 0.85 metres in size.

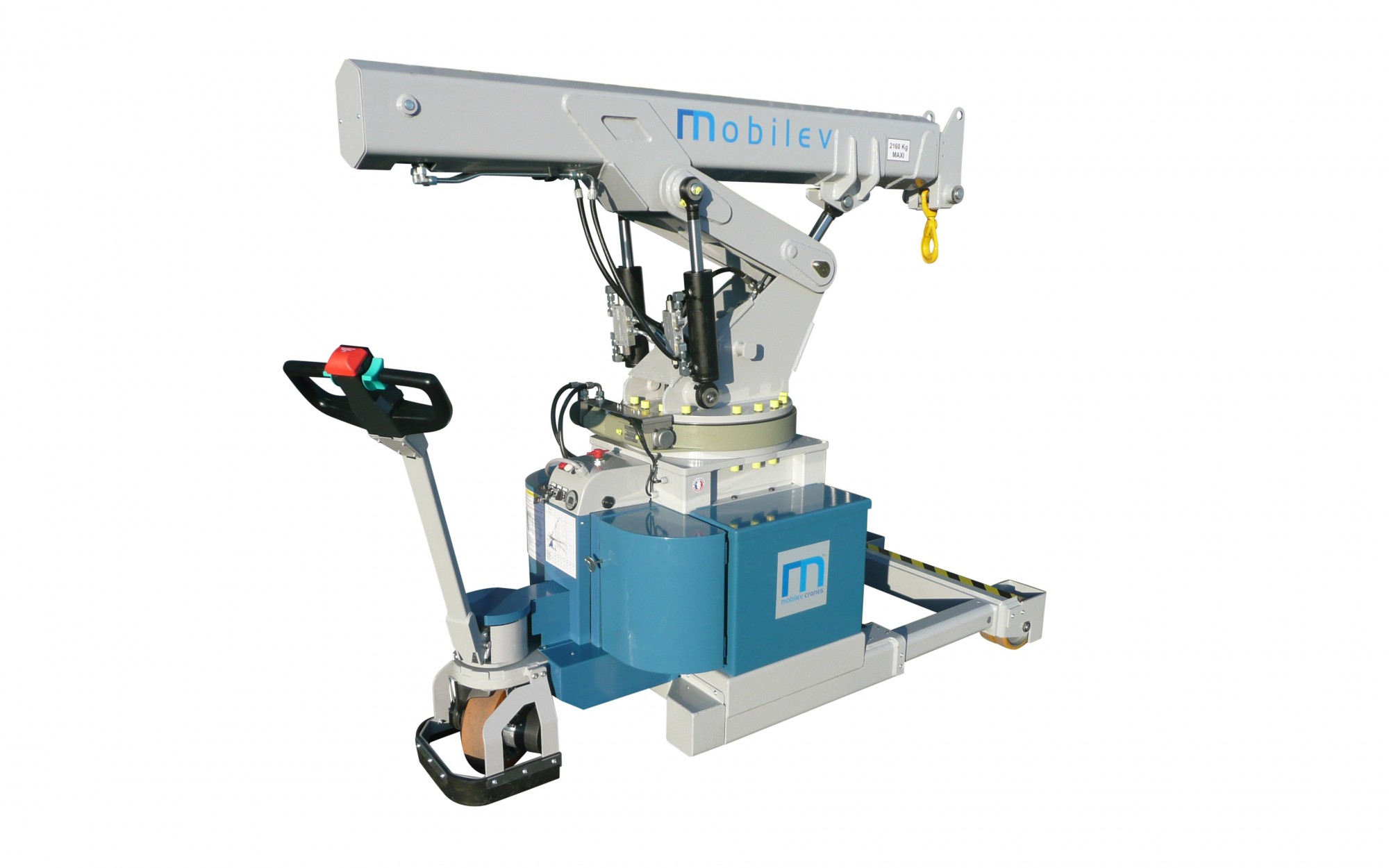

30MT 3X1

This model 30MT 3×1 ultra-compact and powerful mini crane is one of the range of mini cranes that are electric powered with accompanying operator.

It can lift up to 3 tons in places where passageways are narrow, where other equipment cannot go.This mini crane can be equipped with a hydraulic slewing ring that can turn through 18°, a sideways moving base, a hydraulic hoist, proportional remote control and numerous accessories.

Features

     • Performing industrial maintenance operations.
     • Changing moulds on injection presses.

30MT 3X1

This model 30MT 3×1 ultra-compact and powerful mini crane is one of the range of mini cranes that are electric powered with accompanying operator.

It can lift up to 3 tons in places where passageways are narrow, where other equipment cannot go.This mini crane can be equipped with a hydraulic slewing ring that can turn through 18°, a sideways moving base, a hydraulic hoist, proportional remote control and numerous accessories.

Features

     • Performing industrial maintenance operations.
     • Changing moulds on injection presses.

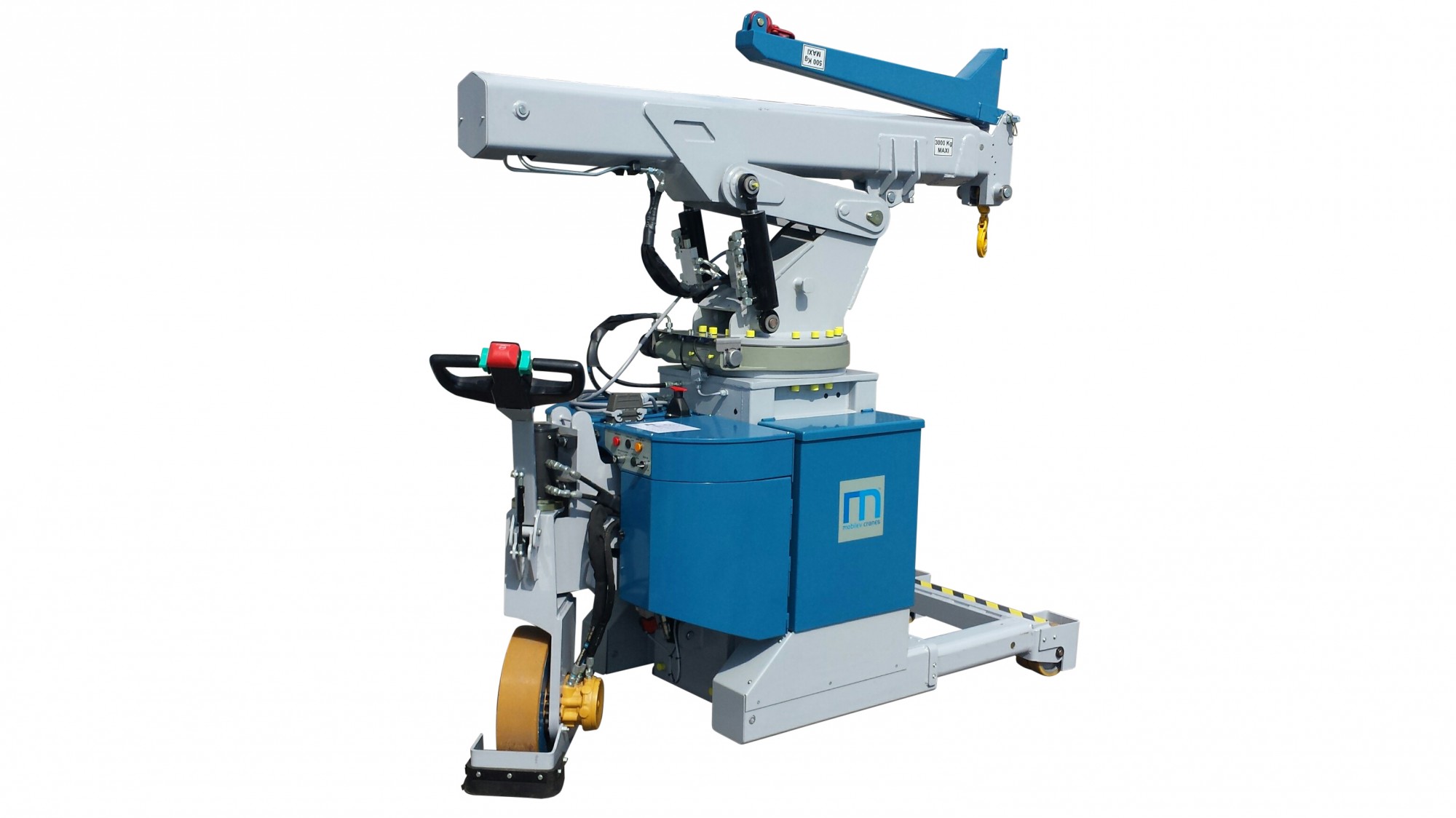

35MT 3×1 FCEL



The 35MT 3×1 FCEL self-propelled mini crane is one of a range of workshop mini cranes that are electric powered with accompanying operator.

It can lift up to 3.5 tons (2.5 tons when equipped with a hydraulic loading platform) in places with narrow aisles. Its patented kinematics allow it to lift loads vertically with travel in excess of one metre (thanks to synchronised control of the front and rear cylinders), or it can be used to place a mould on a (optional) hydraulically deployed platform to transfer loads without them dangling.

This mini crane can be equipped with a hydraulic slewing ring allowing it to turn through 18° (+/-9°), a hydraulic loading platform, a hydraulic hoist, a proportional motion remote control and a variety of accessories.

It is especially suited to changing moulds on vertical presses.
